Receptive Field Bar Mapper

Visual receptive fields, back-projected from the per-direction trial averages of a bar swept across the screen. The method is that of Fiorani et al. (2014)¹, whose Appendix A the implementation follows directly; section numbers below refer to that paper.

One map per selected channel, updated while the run continues.

Appears in the GUI processor list as RF Barmapper. It needs no FFTW runtime.

What it does

A bar sweeps across the screen at constant speed, in N directions. For one direction:

1. Trials are captured on a TTL edge at sweep onset and averaged, exactly as Triggered Average does — this plugin uses the same accumulators.
2. The average is z-scored against its own pre-trigger baseline, smoothed, and optionally rectified (§2.4.2–2.4.4).
3. Time is converted to position along that bar's axis of travel: the sample recorded at time t corresponds to the bar's centre at (t − latency) · speed + sweep start. That is the whole latency correction — an offset, nothing more.

That gives one spatial profile per direction: response as a function of how far the bar had travelled. The bar is long, so a profile is a one-dimensional projection of the receptive field.

Back-projection intersects those projections. A map point x is crossed by the bar when the bar's centre has travelled x · u, where u is the unit vector along the direction of motion, so the value that direction contributes at x is its profile read at x · u. With enough directions the profiles intersect in one place — the receptive field — and elsewhere they do not.

How a direction reaches the plugin

the trial-type broadcast message	arms the matching trigger source — see Triggers and messages
a hardware TTL edge at sweep onset	provides the alignment
the angle each source stands for	is typed in by the user, and is the one thing nothing can verify

Getting a first map

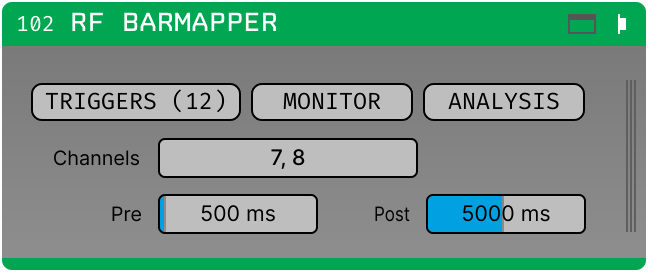

1. Select channels in the editor.
2. ANALYSIS → DIRECTIONS... → Generate → REPLACE. This replaces the trigger sources with N evenly spaced directions, each armed by a trial-type message.
3. Check the compass under ANALYSIS: the angles are the one thing nothing can verify.
4. ANALYSIS → set the speed, sweep start and latency to match the stimulus program, then check that Pre/Post actually cover the sweep — see Making the window and the sweep agree. The stock defaults do not.
5. Record. Maps appear as trials accumulate.

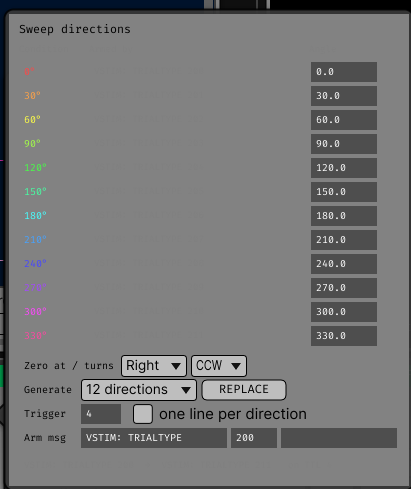

DIRECTIONS...

One row per trigger source, showing what arms it and what angle it means, plus a generator that replaces the sources with evenly spaced directions.

The generator

Configure it to match the messages your stimulus program sends:

Field	Default	What it sets
Generate	8	How many directions, evenly spaced around the circle
Trigger	1	The TTL line carrying sweep onset, numbered as in the trigger table (1-based)
one line per direction	off	off: every direction is armed on that one line and told apart by its message; on: line, line+1, line+2, …
Arm msg — text before	TRIALTYPE	The text before the number
Arm msg — first number	0	The number for the first direction
Arm msg — text after	TIMESEQUENCE	The text after it

The number steps up by one per direction whether or not the TTL line does. For example, VSTIM: TRIALTYPE, 200, TIMESEQUENCE generates VSTIM: TRIALTYPE 200 TIMESEQUENCE, … 201 …, … 202 … — substitute whatever your own stimulus program sends.

A preview line under the fields shows the first and last pattern the current settings would produce, and REPLACE repeats it in the confirmation.

The generator replaces rather than appends, so a generated set cannot silently mix with directions left over from a previous one.

The trailing text is not decoration

TRIALTYPE 3 also contains-matches TRIALTYPE 30, and a trial-end message that repeats the trial type would re-arm the source at trial end — making it fire on the next trial's edge, very likely a different direction, with nothing looking wrong.

Pick trailing text that appears in the trial-start message and not in the trial-end one. Clear it only if your messages carry their own boundary.

The generator settings are saved with the signal chain.

Angles

Parameter	Default	What it does
Zero at	Right	Where the stimulus program's zero angle points: Right (+x), Up, Left, Down
Angles turn	Counter-clockwise	Which way increasing angles turn in the stimulus program
Angle, per condition	unset	Direction of motion for that condition, in the convention above

Angles are stored exactly as typed and converted to a canonical form (0 = right, counter-clockwise) only where they are used, so changing the convention re-interprets the table rather than rewriting it.

Check the convention against your stimulus program

Conventions that differ by 180° — Fiorani et al.'s Appendix A uses zero at left, counterclockwise — produce a perfectly plausible and entirely wrong map. The compass preview redraws when the convention changes.

A condition with no angle contributes nothing to the map — it is not treated as 0°. An angle left blank shows in orange in the table, and as a gap in the compass preview.

Three warnings are shown across the top of the canvas. All three can be legitimate, and all three are more often a typo in the angle column:

• duplicate angles — two conditions claim the same direction;
• uneven spacing — the gaps around the circle are not all 360/N;
• does not span the circle — some gap exceeds 180°. Eight directions crammed into one quadrant are evenly spaced and useless: the profiles have nothing to intersect against, and the map degenerates into a ridge rather than a peak.

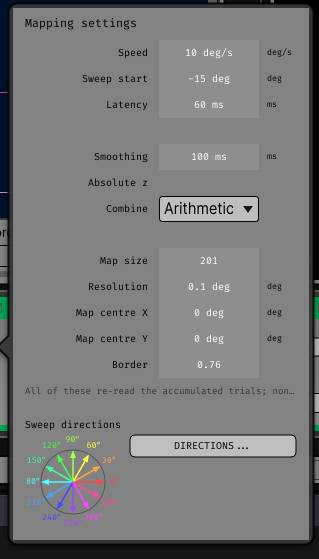

ANALYSIS

No parameter in this plugin discards data

Everything under ANALYSIS is re-read from the accumulated trials whenever it changes, so all of it stays editable during acquisition.

The exceptions are the two capture parameters — Channels and Pre/Post — which do rebuild the accumulators and are locked while acquiring.

Four groups: display units (unit, viewing distance, screen resolution), stimulus geometry (speed, sweep start, latency), how the response is read (smoothing, absolute z, combine), and the map itself (size, resolution, centre, border). Two defaults are worth knowing:

• Latency 60 ms. Without it each direction's response is displaced along its own direction of motion, so opposite directions are displaced opposite ways and the combined field is inflated (their Fig. 3). Too large a latency inflates it the same way, in the other direction.
• Border at 0.76 of the peak, not half — the correction the paper measured (§3.1.1) for the enlargement smoothing and back-projection introduce.

Full list with defaults, ranges and what each one does to the map: Parameter reference → Receptive Field.

Degrees, millimetres or screen pixels

Show units in at the top of ANALYSIS sets the unit for every linear quantity the plugin shows or takes: Speed, Sweep start, Resolution, Map centre X/Y, the map axes and the RF readout on each panel. Fill in Viewing distance and, for screen pixels, Screen resolution — they are what the conversion needs, and they are saved with the signal chain so the rig is typed in once.

Display only, by construction

Degrees of visual angle remain the unit everything is computed, saved and exported in. The conversion happens in the parameter fields and the panel readouts, and the display parameters are the only ones in this plugin that do not trigger a recompute — switching to millimetres cannot move a receptive field or change a map pixel. What is typed is converted back to degrees and clamped against the parameter's own range, so the range does not change with the unit either.

The factor is the small-angle one, mm/deg = distance × π/180 — 9.95 mm/deg at the default 570 mm. It under-reports position by about 4% at 20° eccentricity; see the parameter reference for why one factor is used rather than a tangent for positions.

A saved session keeps the *_deg arrays and attributes exactly as before, and now also carries viewing_distance_mm, screen_px_per_mm and screen_mm_per_deg, so an offline analysis can convert without being told the rig separately.

Making the window and the sweep agree

This is the one thing that is easy to get wrong and produces an empty-looking map with no warning anywhere. The bar is only followed for as long as the trial window lasts:

first sample of the profile:  (−pre − latency) · speed + sweep start
last  sample of the profile:  (post − latency) · speed + sweep start

The bar reaches the map centre at t = latency − sweep start / speed.

The stock defaults do not get there

At 10 deg/s from −15° with Post = 1000 ms, the profile covers −20.6° to −5.6° along the axis, while the default map covers ±10.05°. Everything outside the swept range is padded with zero — no evidence either way, which is what zero means once the traces are z-scored — so the map comes out flat or edge-heavy.

For a sweep that starts at −S and is followed symmetrically past the centre:

post_ms  ≥  2 · S / speed · 1000          (3000 ms for S = 15°, speed = 10 deg/s)
S        ≥  map size × resolution / 2     (10.05° for the default map)

If long windows are impractical, shrink the map instead — the map only has to cover the part of the visual field the bar actually swept through.

Canvas

Two views.

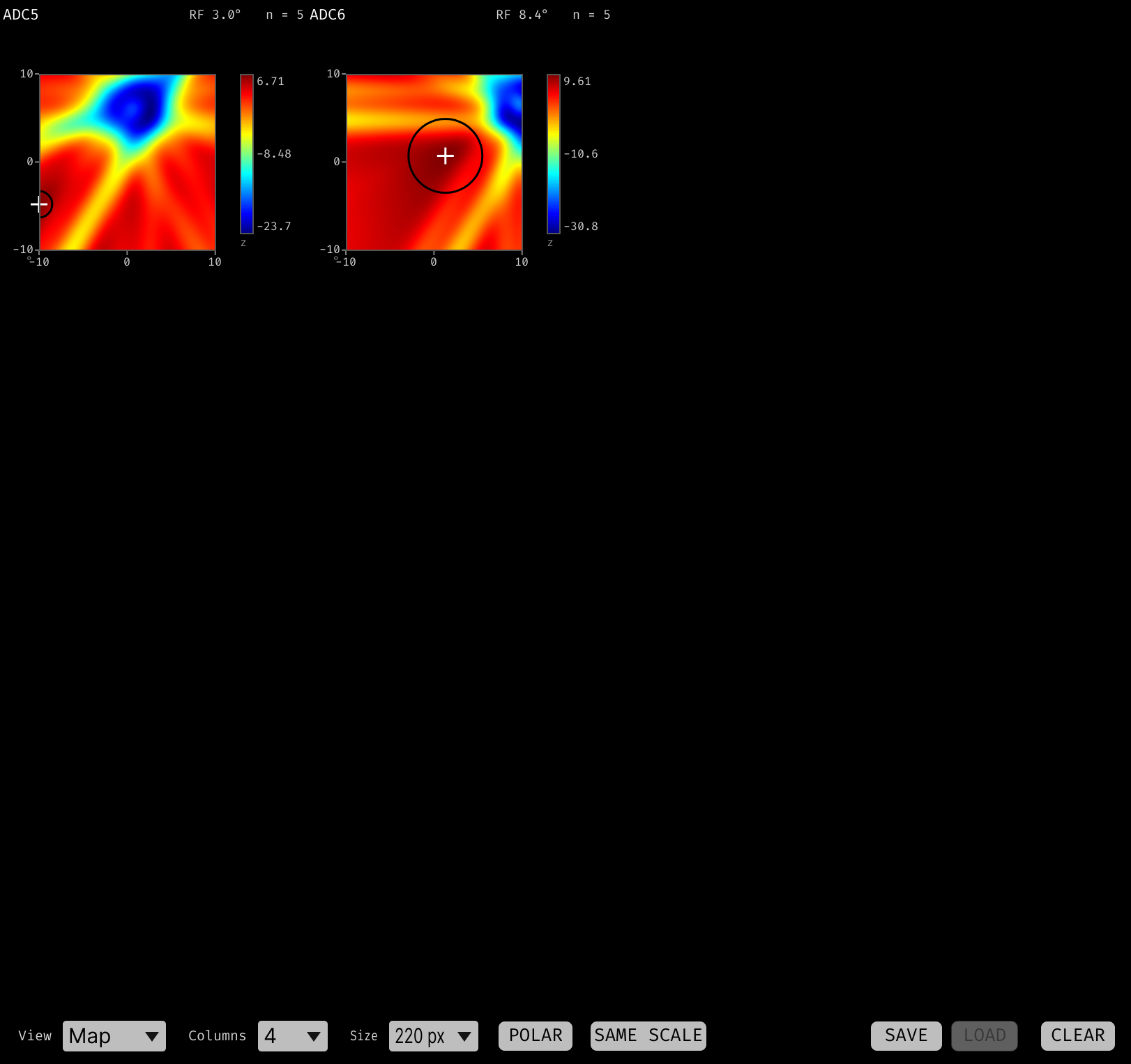

MapTraces

Each panel is one channel:

• Top left — the channel name.
• Top right — RF 2.4° (or RF 24.2 mm, RF 87 px, following Show units in) is the equivalent diameter: the diameter of a circle with the same area as the supra-threshold region (pixels at or above Border × peak). n = 12 is the smallest trial count across directions, not the total.
• The map — jet colour scale, blue (low) to red (high), the paper's own scale. Rows run top to bottom while visual-field y runs upwards; the flip is applied once.
• The axes, along the bottom and down the left — ticks on round multiples in visual-field coordinates, with the unit in the shared corner. Ticks are chosen in whichever unit is being shown, so millimetres get round millimetres rather than the conversions of round degrees. The numbers thin out on a small panel, and the axes disappear entirely below roughly 110 px of map.
• The colour scale, to the right — the ends and midpoint of the range in force, captioned with the unit: z for the arithmetic or geometric mean of per-direction z-scores, |z| when Absolute z is on, z^n for the plain product.
• Black circle and white cross — the equivalent-diameter circle centred on the peak pixel.
• Polargram (bottom right, toggled by POLAR) — each direction's profile sampled at the receptive-field centre (their Figs. 5E, 5F). Drawn flipped to match the map above it.

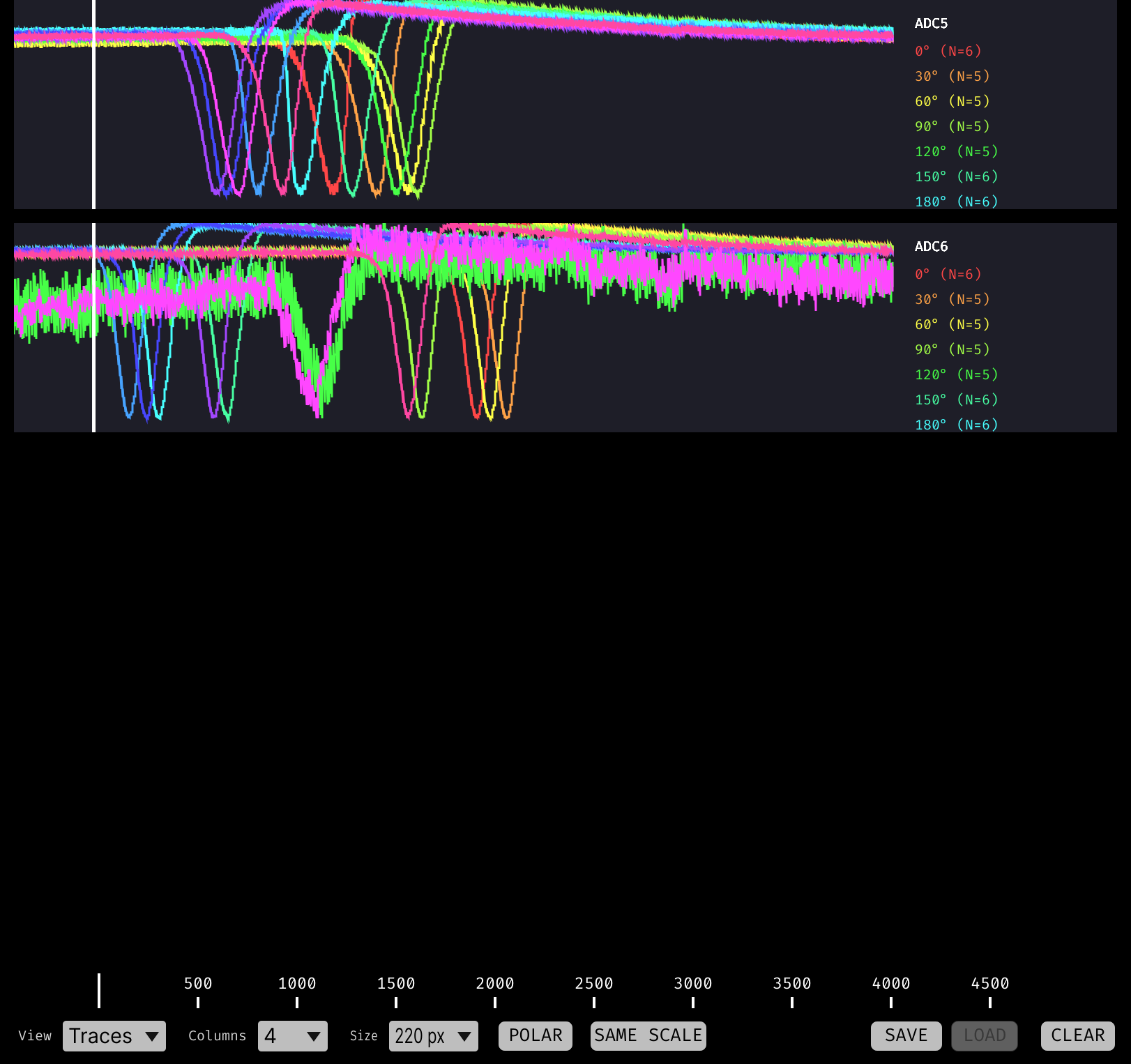

The per-direction averages themselves, overlaid per channel, drawn by the same widgets Triggered Average uses.

This is the diagnostic view: when a map looks wrong the cause is usually visible in the time courses — a direction with no trials, a response at the wrong latency, a baseline that never settled.

Canvas controls

Control	Effect
View	Map or Traces.
Columns, Size	Grid layout. Cells are square and sized from Size.
POLAR	Show the polargram inset.
SAME SCALE	One colour range across every panel, so a strong channel and a weak one look different. Off by default.
CLEAR	Discards accumulated trials, keeps the conditions.
SAVE / LOAD	Sessions, shared with the other triggered plugins.

Sessions

SAVE writes the accumulators — the same three arrays Triggered Average writes — plus the finished maps and their measurements:

Array	Shape	dtype	Contents
maps	(channels, pixels, pixels)	float32	The back-projection maps
map_estimates	(channels, 7)	float64	peak, centre_x_deg, centre_y_deg, area_pixels, equivalent_diameter_deg, width_deg, height_deg — the column names are also in the manifest under map_estimate_fields
map_valid	(channels,)	int32	Whether each channel's mapping is usable
map_channel_indices	(channels,)	int32	Global channel indices

The map geometry (map_pixels, map_degrees_per_pixel, map_centre_x_deg, map_centre_y_deg) is in the manifest, along with the viewing geometry the display units use — viewing_distance_mm, screen_px_per_mm and the derived screen_mm_per_deg. Everything else stays in degrees whatever unit is on screen, so a file does not depend on what the window happened to be showing when it was written.

LOAD ignores the stored maps and recomputes from the restored accumulators, so what is displayed matches the current settings.

The sweep angles travel with the session in the bundle's settings block, matched back up by position on load.

Loading applies the file's angles, overwriting whatever is in the table

The angles are what the loaded trials mean; a session restored under a different angle assignment produces a plausible and wrong map.

Cost

A recompute runs in the background and coalesces requests, so dragging a slider produces a stream of maps rather than a backlog. For one channel with eight directions over a 1.5 s window at 30 kHz and a 201² map: about 4 ms, near enough flat in the smoothing sigma. Everything is linear in the channel count.

Not wired up yet

• The latency scan (one back-projection per candidate latency) is implemented and tested, but has no button in the editor. Set Latency by hand for now.
• Direction- and orientation-selectivity indices are computed on every recompute and are neither displayed nor saved.

---

1. Fiorani, Azzi, Soares & Gattass (2014), Automatic mapping of visual cortex receptive fields: a fast and precise algorithm, J. Neurosci. Methods 221, 112–126. ↩
